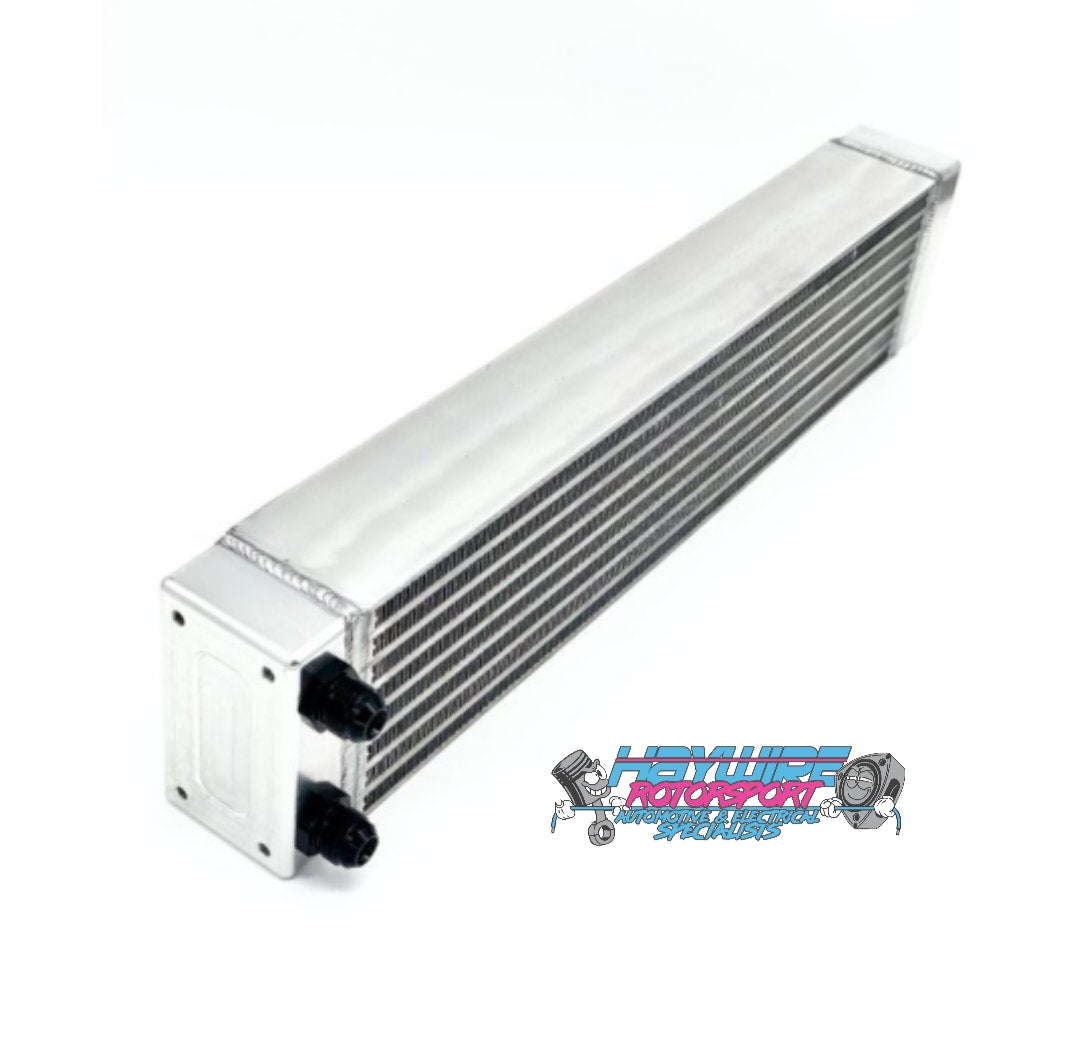

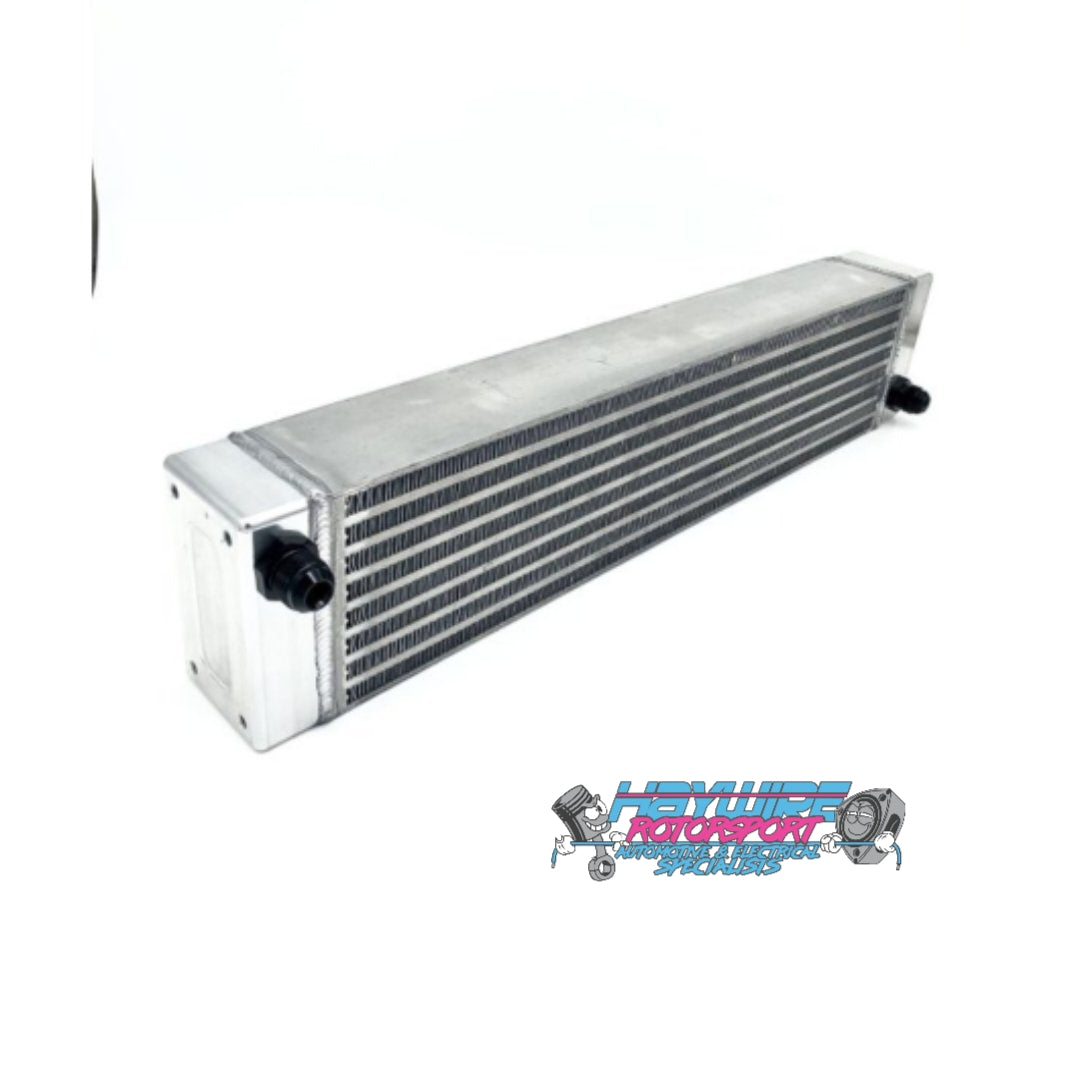

Bar & plate oil cooler (Billet Tanks)

Bar and plate oil cooler with CNC machined billet end tanks.

-580mm overall width, 120mm tall, 70mm thick. (core 500x120x70)

-High efficiency bar & plate core.
-Billet tanks CNC machined in-house from aircraft grade 6061 T6 aluminium.
-60% cooling capacity increase over the stock genuine Mazda FC Rx7 oil cooler. (more than twice the cooling capacity of the cheap chinese tube and fin oil coolers).
-M6 internal threads in each end tank for ease of mounting.
-Pressure tested after welding.
-10AN adapter fittings included.

-High strength! These coolers have a much greater impact resistance compared to stock Mazda and aftermarket tube and fin cooler.

Two configurations available:
-Double pass – direct replacement for factory Mazda oil coolers.
-Single pass – suited to competition applications that require greater oil flow capability.

If you’re having oil temperature problems you need one of these!

Manufacturered here in N.z by Green Brothers Racing
